Enerdrive Explorer K-EXPLORER-01-L Canopy Power System – Right side

Description

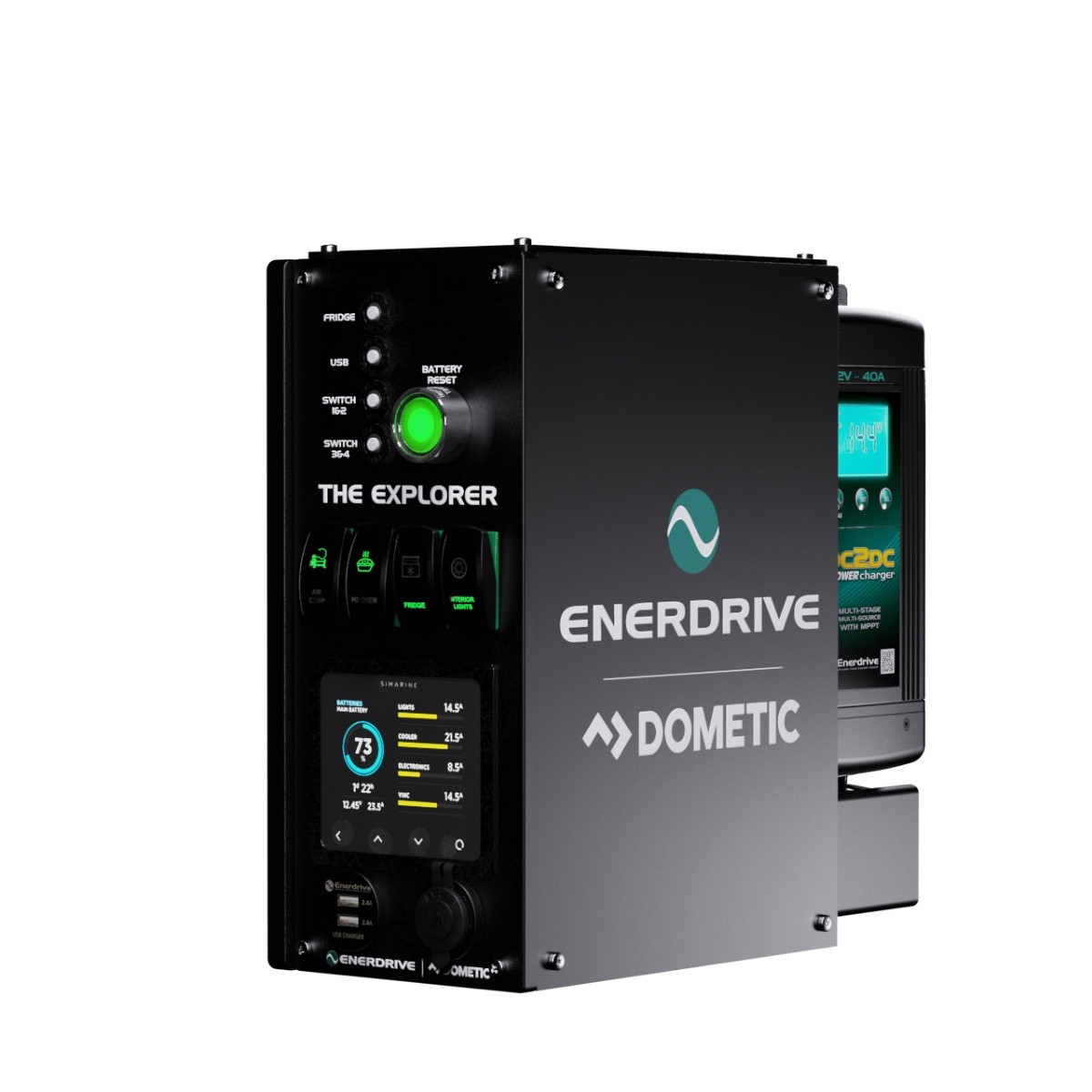

The Enerdrive Explorer K-EXPLORER-01-R is a compact, pre-wired canopy power system designed for 4WD touring and canopy setups that need a reliable minimum-power solution in a neat, space-saving package.

This right-hand mounted system features the Enerdrive ePOWER DC2DC40+ Vehicle and Solar Charger, allowing your auxiliary battery to charge from both the vehicle and compatible solar input while travelling or camping.

The K-EXPLORER-01-R includes:

• Enerdrive ePOWER DC2DC40+ Vehicle and Solar Charger
• ePRO+ Battery Monitor
• 4 pre-wired circuit breakers for main power equipment
• 4 Contura water-resistant rocker switches for lighting and auxiliary loads
• Pre-wired 35mm² main battery cable connection with main DC fuse
• 1 x 50A Anderson plug connection for a fridge
• 1 x 12V cigarette socket
• 1 x dual 2.4A USB charging socket
• Battery reset button for compatible 12V starting systems

The system is pre-wired by Enerdrive where possible, helping simplify installation. The main cabling required at installation is for load outputs and the vehicle and solar inputs.

The Explorer is built into a compact one-piece enclosure measuring approximately 455mm long x 155mm wide x 330mm high and weighs approximately 7kg.

This model is configured for right-hand, or driver-side, installation. The Explorer range is also available in left-hand and roof-mount configurations.

The system is suitable for Wet Sealed, AGM, Gel and Lithium batteries and is also compatible with smart-alternator-equipped vehicles when the required ignition input is connected.

The K-EXPLORER-01-R is ideal for running essential 12V equipment such as fridges, lighting, USB charging and other auxiliary accessories without the need for an integrated AC charger or inverter.

Standard stocked Explorer systems feature a green faceplate. A custom black faceplate and custom switch or circuit-breaker engraving may also be available when specified at the time of order.

Please note: the battery reset function is designed for 12V starting systems only and is not suitable for 24V starting systems without modification.

Backed by a 5-year warranty and Enerdrive/Dometic technical support.

Professional installation is available at our CMC Auto Electrics workshop in Baringa, Sunshine Coast QLD 4551. Contact us to discuss installation options for your vehicle or canopy setup.
